2W Series Solenoid Water Valve(G1/8-G3/8") 2W manufacturer from China Tian Bao Pneumatic CO.,LTD.

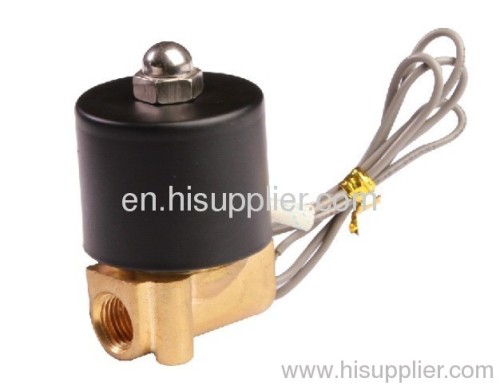

2W Series Solenoid Water Valve(G1/8-G3/8")

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2W

Production Capacity: 500pcs per day

Delivery Date: within 7 to 10 days after p...

Standard or Nonstandard: Standard

Structure: Regulating

Temperature of Media: Medium Temperature

Brand Name: TB

Means of Transport: Air

Packing: export standard packing

Power: Solenoid

Pressure: Medium Pressure

Material: Brass

Media: Gas

2W series direct acting solenoid valve is used for water, air, oil, gas
Body material: brass
Long service of life, easy to control and maintain.

2W series solenoid valve has direct action type piston and quick action, high efficiency, long service life, good waterproof performance.With multiple purposes, multiple wiring direstions and handsome shape

Specification:

Model	2W-06	2W-08	2W-10
Material of body	Brass
Operating method	Direct action type
Pipe size	G1/8	G1/4	G3/8
Nominal diameter	2.5	2.5	4
Applied fluid	Air , water , oil(50CST below), steam
Pressure range	0-1.0MPa
Working temperature	(Normal type): -5-99ºC (High-temperature type):-5-185ºC
Specified voltage	AC12V, AC24V,AC36V,AC110V,AC220V,AC380V, DC12V,DC24V,DC110V
Voltage range	±5%
Min. activating time	0.05s
